HiRes Video Innovations

The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its decentralized concept has made high-resolution video systems cost efficient.



Leading Innovator

MOBOTIX has been producing megapixel cameras exclusively for many years now and is regarded as the global market leader for high-resolution video systems.



The Decentralized MOBOTIX Concept

Unlike other systems, with the decentralized MOBOTIX concept, a high-speed computer and if necessary, digital long-term memory (MicroSD Card) is built into every camera, providing several days of recording time. The PC and the video control center now serve only for viewing and controlling the cameras (PTZ), not for analysis or recording. This makes it unnecessary to purchase expensive video management software, as the most important and computer-intensive functions are already integrated in the MOBOTIX cameras.



Robust And Low-Maintenance

MOBOTIX cameras do not require any lens or positioning motors. Without any moving parts, they are so robust that maintenance is reduced to a minimum. The unique temperature range from -30° to +60°C (-22° to +140°F) is achieved without heating or fan at only 3 watts power consumption. Since no PC hard disk is required for recording, there are no parts that wear out in the entire video system.

FlexMOunt S15



  • Weatherproof dual camera system (IP65) for flexible mounting solutions

  • Two separately connected, discreet miniature sensor modules

  • Image sensor and microphone integrated directly into the sensor module

  • Double Hemispheric equipment replaces up to eight cameras

  • Integrated DVR functionality: Slot for MicroSD card (up to 64 GB)

  • Functional expansion via MiniUSB and MxBus connector

  • S15M & S15 Hemispheric: Available July 2013

  • S14 sensor modules cannot be used with S15 models (and vice versa)

AllRound M15



  • Important Features

  • Modular system with exchangeable image sensors

  • Weatherproof premium dual camera for all kinds of applications (IP66)

  • Combined day/night camera for 24-hour use

  • Modular System Setup

    The M15 camera platform consists of three main components:

  • Housing with integrated camera electronics, flash memory, external ports (Ethernet, MxBus, MiniUSB) and pre-installed VarioFlex mount for wall or ceiling mounting

  • Front element to hold one or two sensor modules, with microphone, speaker, passive infrared sensor (PIR), outside temperature sensor and status LEDs

  • One or two sensor modules with lens, image sensor, microphone and status LEDs

  • 5MP sensors: 2.5 times more details compared to full HD

  • Including video motion detection software MxActivitySensor

AllRound M24

  • Exchangeable lens camera for indoor/outdoor use (IP66)

  • 3MEGA-resolution (QXGA, 2048x1536 pixels)

  • Exchangeable lenses from Super Wide-Angle (90°) to tele (15°); optional with CS-Vario or Hemispheric (180°)

  • Color sensor 1 lux at 1/60 s, 0.05 lux at 1 s exposure time

  • Microphone and speaker with full audio functionality (VoIP and SIP telephony with video)

  • Universal wall/ceiling mount conceals the cabling

  • Internal DVR (up to 64 GB) possible, recording without network load

MonoDome D24

  • FixDome camera for flexible mounting, for indoor and outdoor (IP65)

  • Optional vandalism, On-Wall and In-Ceiling sets

  • 3MEGA-resolution (QXGA, 2048x1536 pixels)

  • Exchangeable lenses from Super Wide-Angle (90°) to tele (15°)

  • Color sensor 1 lux at 1/60 s, 0.05 lux at 1 s exposure time

  • Vandalism set consists of stainless steel ring (polished, matt, powder-coated) and reinforced dome

  • On-Wall set features concealed cabling, space for expansion modules (batteries, UMTS, WiFi, etc.)

  • Outdoor wall mount (IP65) with space for expansion modules

  • Internal DVR (up to 64 GB), recording without network load

DualDome D15



  • individual choice of lenses: tele/wide-angle, day/night, 180° panorama function

  • integrated DVR (up to 64 GB) stores up to 520,000 HiRes images (6 days with 1 fps)

  • simple installation with only one network cable (data & power/PoE)

  • continuous digital pan, tilt and zoom (virtual PTZ function)

  • highest audio quality thanks to new codec and echo elimination

  • optimized interfaces: MxBus and MiniUSB for e.g. UMTS and GPS

  • robust, maintenance-free, IP65 weatherproof, from -30 to +60 °C (-22 to +140 °F)

Hemispheric Q24





  • Hemispheric 360° allround view for complete room monitoring

  • Complete panorama view, ideal for access control

  • Simultaneous Quad-display of all four room corners

  • Digital continuous pan, tilt and zoom

  • Robust and maintenance-free, without mechanically moving parts

  • Alarm function, speaker and microphone integrated

  • Perfect design with low installation height, compatible with all D24 accessories

  • Internal DVR (up to 64 GB), recording without network load

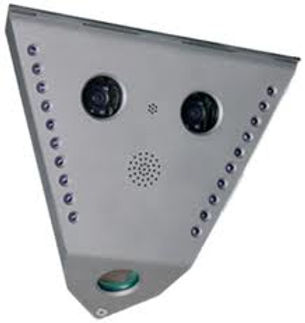

Vandelism V15



  • Bulllet-proof IP dual camera for corner mounting

  • Operational at temperatures from -30 to +60 °C (-22 to +140 °F) (IP54)

  • Cost-efficient PoE power supply via network cable

  • Front plate and cover made from 5 mm stainless steel

  • 5MP image sensors for day and night (color and B/W)

  • Image angels from 13° (Tele) up to 82° (Wide Angle)

  • Automatic day/night switch

  • Two-way communication via integrated microphone and speaker

  • MxActivitySensor for intelligent motion detection

  • MicroSD card up to 64 GB, 4 GB pre-installed

  • MxBus und MiniUSB connections for interface boxes

IP Video Door Station T24



  • IP Video Door Station

  • Two-way video around the world

  • Allround view with no blind spots

  • Recording with sound

  • Keyless access

  • Integrated message function

  • Very simple installation

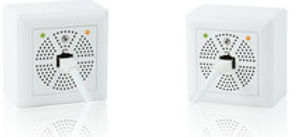

MX 2Wire



Adapter set to transfer via Ethernet and PoE using a two-wire cable

  • Two-wire cables are used to connect 10/100 MB Ethernet devices

  • Ideal to connect e.g. a PC, WLAN, IP camera, IP telephone, IP door station

  • Data transfer distance up to 500 meters; data rate is up to 30 Mbps, depending on distance

  • Connected devices are supplied with up to 7 watts via PoE

  • Simple installation in standard socket frames or surface-mounted sockets

  • Developed and manufactured by MOBOTIX in Germany

Mobotix App



MOBOTIX App: The Premium Mobile Solution

  • Mobile remote station for MOBOTIX cameras and door stations

  • Bandwidth-optimized remote access via Wi-Fi or Internet

  • Live images and recordings in the best MOBOTIX HiRes quality

  • Two-way communication, door opening and video mailbox access

  • Doorbell and alarm notifications, protection of privacy

  • Convenient search functions, playback of external MxPEG videos

  • Grouping of cameras and filtering of event

Mobotix Control Center



Professional Video Management



  • Proven many times over worldwide in the most demanding video applications

  • Unlimited number of users and cameras, no license feed

  • Individual user interface, adaptable to each individual user

  • Simplest installation and complete use on any standard PC

  • Convenient layout editor for integrating real building plans

  • Integration of conventional network and analog cameras as well

  • Export recordings to AVI and Quicktime as H.264 video with sound

  • 100% free of charge

Mx Easy



Easy-to-use Video Management Software



Proven many times over worldwide in the most demanding video applications

  • Ideally designed for the wide range of functions of the MOBOTIX cameras

  • Monitoring of up to 16 MOBOTIX cameras

  • Supports decentralized system concept and works with internal camera recording

  • Simple, quick setup; user-friendly and intuitive operation

  • Transparent layout of operating elements; compatible with touch panels

  • Ideally suited for small offi ce and home security environments

  • Platform-independent format (Windows, Mac, Linux)!

  • Absolutely free of charge!
